Passage Bidirectional Mechanism swing Barrier Gate with RFID card / fingerprint

Name: Passage Bidirectional Mechanism swing Barrier Gate with RFID card fingerprint
Brand: Goldantell
Price: 1 USD

Wholesale Passage Bidirectional Mechanism swing Barrier Gate with RFID card / fingerprint from china suppliers

Brand Name : Goldantell

Model Number : GAT-608

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

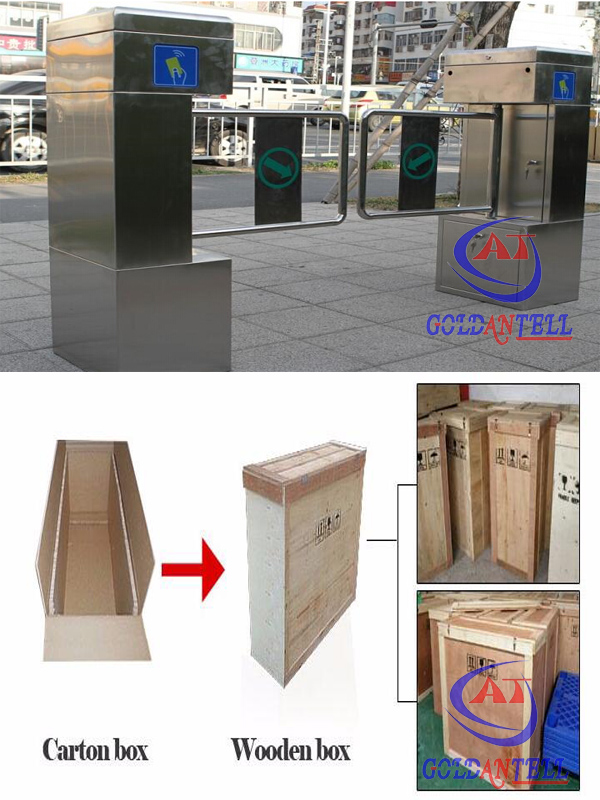

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : Passage Bidirectional Mechanism Swing Barrier gate with with RFID card / fingerprint

material : domestic standard 304# stainless steel

Compatible : RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Time of opening/closing : 1 second

Passage width : 600-830mm

Communication port : RS485 ,TCP/IP

Application : Indoor&outdoor

Reset time after break down : 10 seconds

Contact Now

Passage Bidirectional Mechanism swinging Barrier Gate with RFID card / fingerprint

Specifications:

Item	GAT-627-1( single motor ) GAT-627-2( double motors )
Type	Half height swing turnstile
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	1second
Passage width	530-830mm
Reset time after break down:	10 seconds
Transit speed	30-40 people/minute
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Communication interface	RS485/232
Direction:	single or bi-directional (optional)
Swing arm angle	180 degree
Warranty	1 years

Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
6. Can manager and long-range control the turnstile directly by managing the computer5. Before received the open signal, the turnstile will lock automatically

7. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. Automatic Reset Functions: after you swap the card, during the specific time (the system is

Extended function:

1.LED counting function

2.Box house can lengthen, swing arm lengthen

3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
Voice Prompt Function

4. Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions

5.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately

Control system:

RFID Reader&Fingerprint Reader
Coin acess,QR code reader
Bar code System,
ESD Tester Access Control
Remote button

Application:

Supermarket
Subway Station, Bus Station
Tourism
Exhibition
Bank
Theater
Swimming Hall
Fitness Gym
Residence Area
supermarket
