Home > Flap Barrier Gate >

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp

Product Categories
SHENZHEN GOLDANTELL TECHNOLOGY CO.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp

  • 1
  • 2

Brand Name : Goldantell

Model Number : GAT-215

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : Facility security retractable Flap Barrier gate with Infrared induction clamp function

Working voltage : AC220±10%V 50±10%HZ

Communication port : RS485 ,TCP/IP

Compatible : RFID Reader&Fingerprint Reader ,Coin access,QR code reader,Bar code System,ESD Tester Access Control, remote button

Materal : 304 stainless steel/316 stainless steel

Transit speed : 30-40 people/minute

Service life : 3000,000 times

Working movement : DC24V solenoid valve

Arm width : 265m

Work environment : indoor or outdoor

Contact Now

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp



Flap Barrier Gate Specifications:

Item

GAT-203-1( single motor )
GAT-203-2( double motors )

Top Cover:

Acrylic or stainless steel

Working voltage:

AC220±10%V 50±10%HZ

Retractable arm length:

265mm

Time of opening:

0.6 second

Passage width:

≤600mm

Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Reset time after break down:

10 seconds

Direction:

single or bi-directional (optional)

Drive motor:

DC 24 V brush motor

Sensor beams:

5 pairs for 1 complete lane

Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA


Features of Flap Barrier Turnstile:

1. working method can be set by the buttons on the main panel
2. This model is double wing flap gate, low noise, smaller casing, save space
3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
4. Anti-illegal in, anti-intrusion, auto close for reverse direction.
5. Anti-collision, gate closes when no valid signal is given.
6. Gates can be synchronous
7. uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
10. One way or two way control
11. Unit can be controlled and administered by remote control

Advantages

  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Convenient installation and maintenance.
  • Malfunction self-detection. Which is easy for operation and maintenance.
  • Audible and visual alarm in case of unauthorized access
  • Friendly and professional customer service people help you in 16 hours
  • we can provide not only product, but also system software management.

detial profile:

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp

package detial:

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp


Product Tags:

Flap Barrier Turnstile



automatic flap barrier


Wholesale Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp from china suppliers

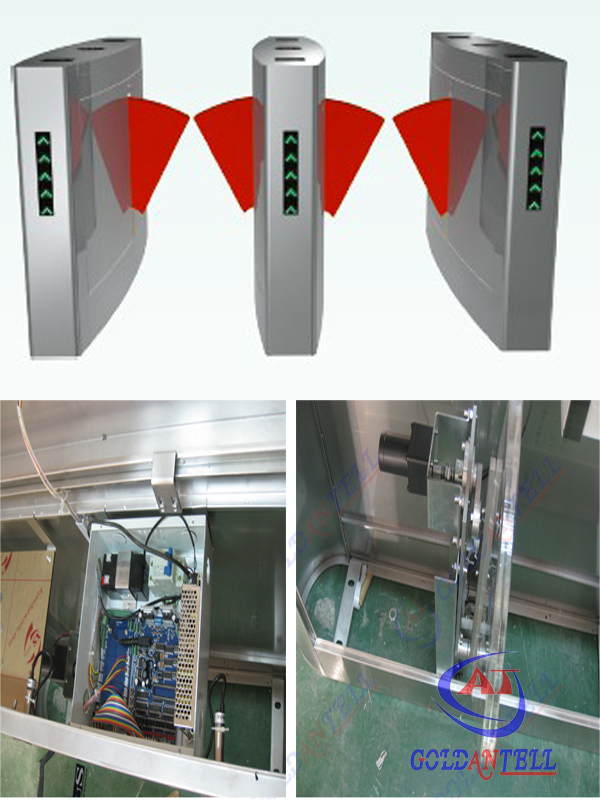

Access Control Flap Barrier Gate , retractable pedestrian barriers Infrared induction clamp Images
