Fast speed passing metro Flap Barrier Gate with automatic Reset Functions

Name: Fast speed passing metro Flap Barrier Gate with automatic Reset Functions
Brand: Goldantell
Price: 1 USD

Wholesale Fast speed passing metro Flap Barrier Gate with automatic Reset Functions from china suppliers

Brand Name : Goldantell

Model Number : GAT-221

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : Fast speed passing metro flap barrier gate with automatic Reset Functions

Compatible : RFID Reader&Fingerprint Reader ,Coin access,QR code reader,Bar code System,ESD Tester Access Control, remote button

Arm material : Acrylic or soft arm

Transit speed : 30-40 people/minute

Service life : 3000,000 times

Working movement : DC24V solenoid valve

Arm width : 265m

Work environment : indoor or outdoor

Communication interface : RS485/232

Contact Now

Fast speed passing metro Flap Barrier Gate with automatic Reset Functions

Flap Barrier Gate Specifications:

Item

GAT-221-1( single motor )
GAT-221-2( double motors )

Working voltage:

AC220±10%V 50±10%HZ

Retractable arm length:

265mm

Time of opening:

0.6 second

Passage width:

≤600mm

Pass speed:

40 persons/min (open), 25-30 persons/min (closed)

Number of led lamp

1pcs or 3 pcs

Direction:

single or bi-directional (optional)

Transit speed

30-40 people/minute

Input interface:

+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA

Size:

1200*280*980mm

Work environment

Indoor and outdoor (shelter)

Features of Flap Barrier Turnstile:

The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

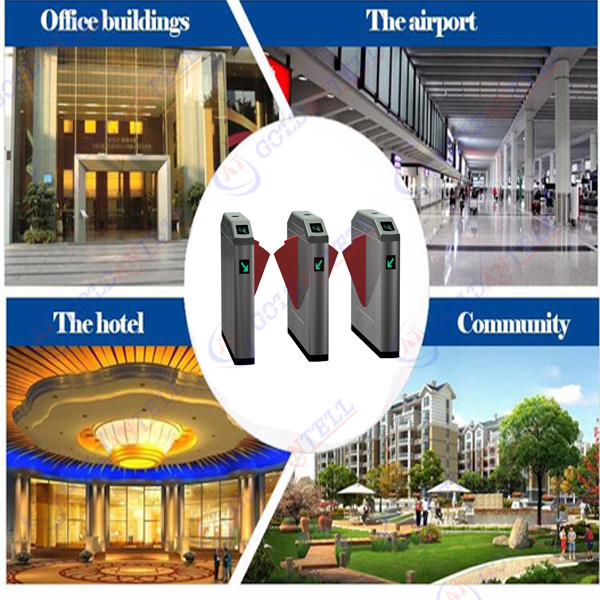

application:

Product Tags:

Flap Barrier Turnstile

automatic flap barrier

Fast speed passing metro Flap Barrier Gate with automatic Reset Functions Images
