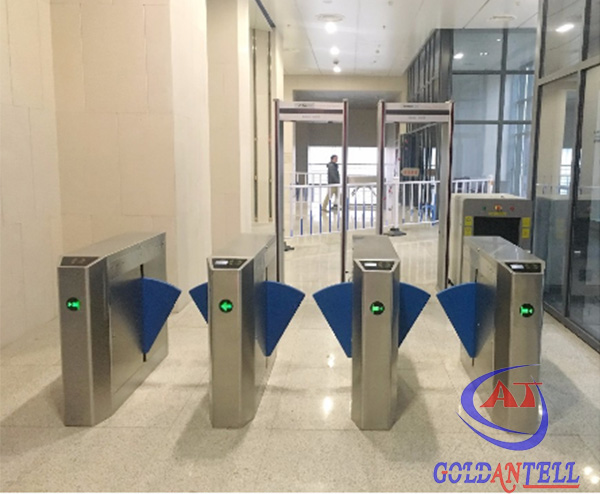

Stainless Steel Electrical gate turnstile entrance Fingerprint Access Control System
Technical parameters
| Material | domestic standard 304# stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Drive motor | DC24V brush motor |
| Size | 1200mm(L) * 280mm (W) * 990mm (H) |
| Retractable arm length | 260 mm |
| Passage width | ≤600mm |
| Relative humidity | ≤90% coagulation free |
| Direction | single or bi-directional (optional) |
| Working environment | indoor/outdoor (with a tent over) -10℃～70℃ |
| Reset time after break down | 10 seconds |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Communication interface | standard RS485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Function &features
1 . Alarm function
2 . Anti-pinch function
3 . Automatic Reset Functions
4 . Infrared reset function & Infrared induction clamp function (Optional:3 pairs or 5 pairs Infrared)
5 . Turnstile can setting the working condition by press the button of main control board.
6 .This model is newest second generation of movement (mute), soft baffle (PU mold)
7 . The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
8 .The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
Customized GAT-203 design draft
Extended Function
1 . LED indicator light
2 . Box house can lengthen, telescopic arm color can choose
3 . Infrared logical judgment function (you can choose 7 pairs or 9 pairs Infrared)
4 . Normally open or closed can be adjust to meet the requirements of the different place.
5 . Sound and light alarm prompt functions
Classified into two kinds: single motor (suitable for single passageway and multiple passageway)；Double motors (suitable for multiple passageways)
Suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
Goldantell product introduction
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...
About the package
1 . One pair need two packages.
2 . With access control system, need closed wooden box packing.
3 . Without the access control system, two ways for your choice: crate and closed wooden box.
About access control system
1 . we can offer access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2 . ESD tester system and function.
3 .support special function: counter, coin- operation.
Goldantell Competitive Advantage
1 . More than 9 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2 . We can provide not only product, but also system software management.Save your time and cost.
3 . Friendly and professional customer service people help you in 16 hours.
4 . About after sales problem :
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged within1 year(exclusion of human factors ),we will send you spare parts by fastest express,you no need bear any fee.
